Space is the silent constraint in modern construction. On urban infill projects, narrow industrial plots, or remote job sites hemmed in by terrain, a full-scale concrete plant layout often feels impossible. Yet the demand for ready-mix or on-site batching does not shrink just because the available land does. The solution is not to abandon batching capacity but to rethink the geometry of a concrete plant from the ground up. A well-planned concrete plant layout for limited space can match the output of a much larger facility by prioritizing vertical storage, modular equipment, and smart material flow. This article offers a fresh, practical perspective on compact plant design, including how a mobile concrete plant and specialized units like the AJP40 mobile concrete plant with pump can turn a cramped site into a productive one.
Why Limited Space Changes Everything
Traditional batching plants(plantas concreteras) assume generous room for aggregate storage, truck maneuvering, and separate cement silos. When that room disappears, the design logic must shift. Instead of thinking in terms of area, think in terms of volume and sequence. Every cubic meter of space should serve at least two functions. For example, a retaining wall can double as a loading ramp. A silo foundation can house a small control room. The goal is to compress the process without creating bottlenecks that slow down batching or endanger workers.

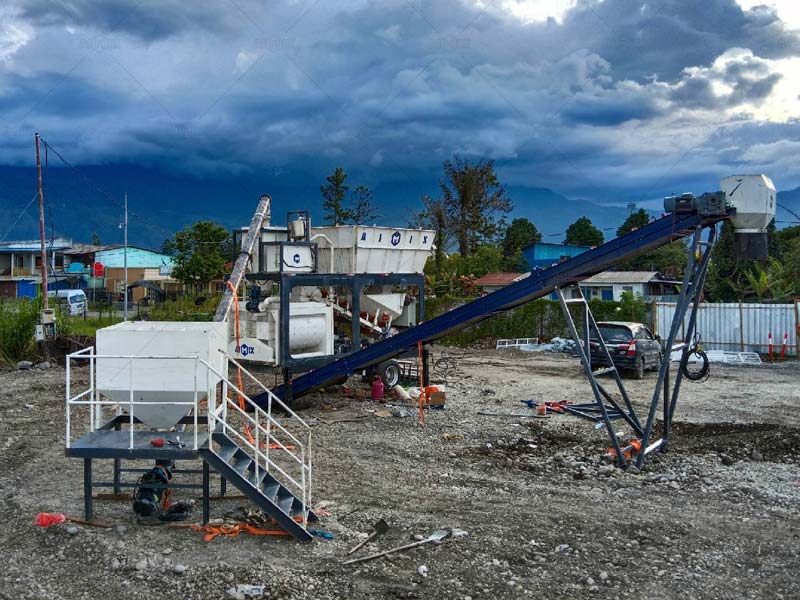

A mobile concrete plant is often the first answer because it arrives pre-assembled on a chassis and requires far less civil work. But even mobile units need careful placement. The difference between a smooth operation and a daily traffic jam is often a few meters of thoughtful layout.
Key Principles for Compact Concrete Plant Design
1. Vertical Integration Over Horizontal Spread
When you cannot spread out, build up. Use tall aggregate bins with dividers to store multiple sizes in one footprint. Position the cement silos directly above the batching area if structural codes allow, or use low-profile silos that fit under overhead obstacles. A compact concrete plant can use a single tower structure that combines weighing, mixing, and discharge in one vertical column.
2. Modular and Mobile Equipment
Modular components let you assemble a plant that fits the site rather than forcing the site to fit the plant. A mobile concrete plant Peru projects often use skid-mounted mixers and foldable conveyor sections. The AJP40 mobile concrete plant with pump is a prime example: it combines batching, mixing, and pumping in one integrated unit, eliminating the need for separate pump trucks and long discharge chutes. This reduces the turning radius for trucks and frees up space for aggregate stockpiles.
3. One-Way Material Flow
In tight sites, any reversing or crossing of vehicle paths wastes time and space. Design a loop or a straight line where aggregates enter at one end, the concrete plant discharges at the other, and trucks exit without backing up. If a loop is impossible, use a turntable or a small hydraulic ramp to turn trucks around. The AJP40 mobile concrete plant with pump can discharge directly into a pump hopper, so the truck mixer never needs to position under a separate pump—saving several meters of maneuvering room.
4. Shared Utilities and Dust Control
Compact layouts concentrate dust, noise, and water runoff. Place dust collectors and water sprays near the main material transfer points. Use a single electrical panel to serve the concrete plant, the pump, and the lighting. For a mobile concrete plant(planta de hormigón móvil), pre-wire the chassis so that only one connection is needed on site. This not only saves space but also reduces setup time.
Step-by-Step Layout Planning for a Constrained Site
Step 1: Map Every Movement
Before drawing equipment, draw people and vehicles. Mark the path of the wheel loader, the transit mixer, the pump truck (if separate), and the workers. Identify the tightest turning circle. In many limited-space projects, the wheel loader is the largest moving object—not the mixer. If you use a mobile concrete plant Peru(planta de concreto móvil Perú) style unit with a built-in pump, you eliminate one vehicle from the equation.
Step 2: Choose the Right Equipment Footprint
Compare the footprint of a stationary plant versus a mobile concrete plant. A stationary plant might need 200 square meters; a mobile unit like the AJP40 mobile concrete plant with pump can operate in 80 to 100 square meters, including aggregate storage. The pump integration means you do not need a separate pump station or a concrete pump truck parked nearby.
Step 3: Design Aggregate Storage That Fits
Use high-walled bins with a dividing wall system. If space is extremely tight, consider a single-bin design where you switch aggregate types between batches—but this slows production. A better compromise is a three-compartment bin with a small front loader. Position the bins so the loader can scoop and retreat without crossing the main traffic lane.
Step 4: Position the Concrete Plant for Discharge
The discharge point should be as close as possible to the final pour location or to the pump hopper. With the AJP40 mobile concrete plant with pump, the discharge chute feeds directly into the integrated pump, which then pushes concrete up to 200 meters horizontally. This means the concrete plant itself can sit in a corner while the pump does the reaching.
Step 5: Plan for Maintenance and Safety
Limited space often leads to blocked access for maintenance. Leave at least 0.8 meters around all service points. Use quick-release panels. For a mobile concrete plant, schedule maintenance when the plant is folded or moved to a wider area. Never compromise on lockout/tagout procedures just because space is tight.
Comparing Layout Options for Small Sites
| Layout Type | Space Required | Best For | Key Equipment |
|---|---|---|---|
| Vertical tower plant | 60–80 m² | Urban high-rise | Bucket elevator, low-profile silos |
| Mobile concrete plant | 80–120 m² | Remote or temporary sites | AJP40 mobile concrete plant with pump |
| Skid-mounted mini plant | 40–60 m² | Small precast yards | Pan mixer, manual aggregate feed |
Notice that the mobile concrete plant option offers the best balance of output and flexibility for most limited-space projects. In Peru, where mountainous terrain and narrow access roads are common, a mobile concrete plant Peru solution is often the only viable choice. The AJP40 mobile concrete plant with pump(AJP40 planta de concreto móvil con bomba) has been used on such sites to batch and pump concrete in a single, compact footprint.
Common Mistakes to Avoid
- Forgetting to account for aggregate stockpile replenishment. A full bin needs a loader path—plan it early.
- Ignoring wind direction. Dust from a concrete plant will drift into neighboring properties if you do not place screens or water sprays correctly.
- Underestimating the turning radius of a transit mixer. Even a small mobile concrete plant needs a truck that can approach and leave without a three-point turn.
- Neglecting drainage. Wash water from a concrete plant must be contained. In tight sites, a single settling pit can serve the entire operation.
Final Thoughts on Turning Constraints into Advantages
A limited-space concrete plant layout is not a compromise; it is an exercise in efficiency. By choosing modular equipment, integrating functions, and planning every movement, you can achieve high output on a small footprint. The AJP40 mobile concrete plant with pump represents this philosophy—batching, mixing, and pumping in one compact unit. Whether you are working on a narrow city lot or a remote mountain road, a well-designed mobile concrete plant can keep concrete flowing without wasting a single square meter. Remember that the best layout is the one that you can set up, operate, and dismantle safely, batch after batch.
